Woodworking CNC Router Machine

Working size: 2000×3000×200mm
Spindle power: HQD 6kw air cooling spindle
Drives motor: Leadshine stepper motor and drives
Control system: RichAuto A11 DSP
Adsorption system: 7.5kw air pump
Dust collector: 3kw double bag dust collector
X-Y movement: Rack and pinion, gear drive
Z movement: Ball screw /Taiwan
Packing size(L*W*H): 3650x2260x1630mm
Packing Weight (KG): 2250kg
CNC or not: CNC
No.of spindle: Single
Number of Axis: 3
Place of Origin: Shandong, China
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Construction works , Advertising Company
Key Selling points: High-accuracy

Send Inquiry

Features

Machine Introduction

1. 3 axis transmission with imported ball screws ensures stable and smooth movement of the machine.X and Y axis adopt synchronous belt and wheel transmission enable the machine work with high accuracy.

2. The convenience of control: it can choose the advanced DSP control system of USB connection, the machine is completely offline working, not occupying any computer resources, and it can achieve the DSP on-off antomatism, achieve high-speed machining, the curve and straight line reach synchronization, the curve is more perfect.

3. The gantry is welded by a thick seamless steel structure; it is treated by high-temperature tempering and vibration stress relief (VSR) to reduce residual stress; ensure good stability and not easy to deform. The machine bed and frame are welded with thickness of steel tubes. heavy-duty machine bed.

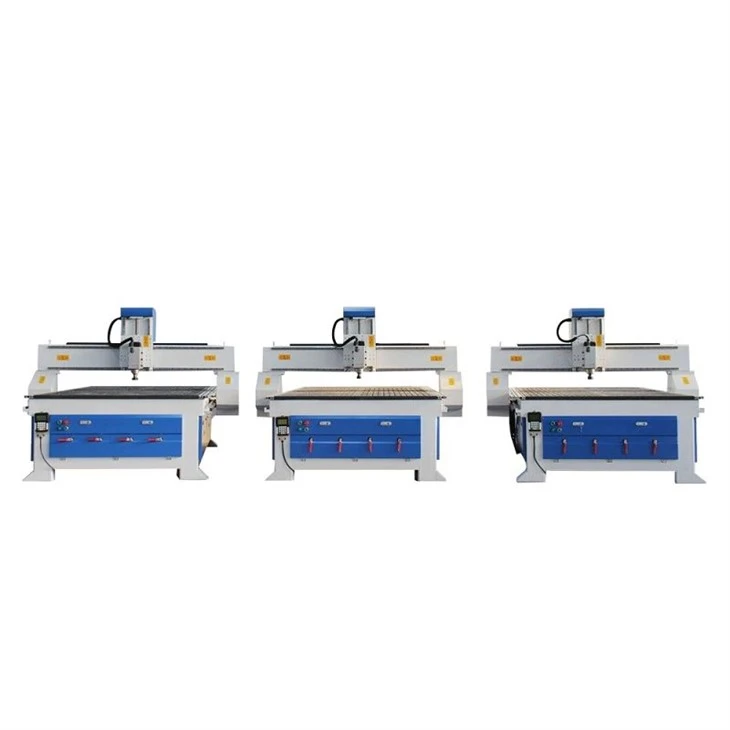

Specification of 2030 Wood CNC Router Machine

1	Model	EK-2030
2	Machine structure	Heavy machine bed, table move on Y axis
3	Working area	2000x3000mm
4	Feeding height	200mm
5	Spindle	HQD 6kw air cooling spindle
6	Range of Spindle Speed(r.p.m)	1 - 18000 rpm
7	Max. speed	35,000mm/min
8	Max. cutting speed	25,000mm/min
9	Control system	RichAuto A11 DSP
10	Drive motor	Leadshine stepper motor (servo optional)
11	Adsorption system	7.5kw air/water pump
12	Dust collector	3kw double bag dust collector
13	X-Y movement	Rack and pinion, gear drive
14	Z movement	Ball screw drive/Taiwan
15	Working precision	0.05mm
16	Repeatability precision	0.02mm
17	Command code	G code
18	Compatible software	Type3/Artcam/UG/Pro-E/Mastercam/Ucancam etc
19	Working voltage	AC380V/50-60Hz/3 phase
20	Packing size	3650x2260x1630mm 2250kgs
21	Warranty times	18 months

Applications

The 4x8 CNC router can easily carve and cut everything from soft wood and acrylic to hard stone and glass, as well as cutting and milling aluminum and copper. In terms of size limitations, it can handle everything from small-sized projects to full-sized projects up to 4 feet by 8 feet. In terms of application, it can be used in small businesses, integrated into large-scale industrial manufacturing, and even used for education, training and scientific research.
• Furniture Making: Cabinets, office furniture, home furniture, chairs, tables, doors, and windows.
• Woodworking: Computer tables, game cabinets, voice box, sewing machines table, music instruments, wood balusters & spindles, table legs, and some cylinder woodworking projects.
• Decorations: MDF, organic glass, artificial stone, PVC, acrylic, plastic and soft metals such as aluminum, copper, brass cutting and milling.
• Industrial Manufacturing: Sign making, plastic chemical components, insulation part, bowling tracks, inner body of car, stairs, epoxy resin, anti bate board, PCB, ABS, PE, PP, and other carbon mixed compounds.
