The Fiber Laser Cutting Machine manufacture!

Jinan Yidiao CNC Equipment Co., LTD it is a professional China CNC machine manufacturer with core technology and independent intellectual property rights.

First 12 Last

Why choose us

Sales market

Yidiao products in over 180 countries from Asia, Europe, Africa, North America, South America, and Oceania, which drive us to be a global CNC machine brand.

Our Certificate

Jinan Yidiao company has independent import and export rights and has passed CE, SGS, and FDA certifications.

Our Service

Our sales will recommend suitable machines based on your application, we will ask you about the processing material, material thickness, processing format, etc.

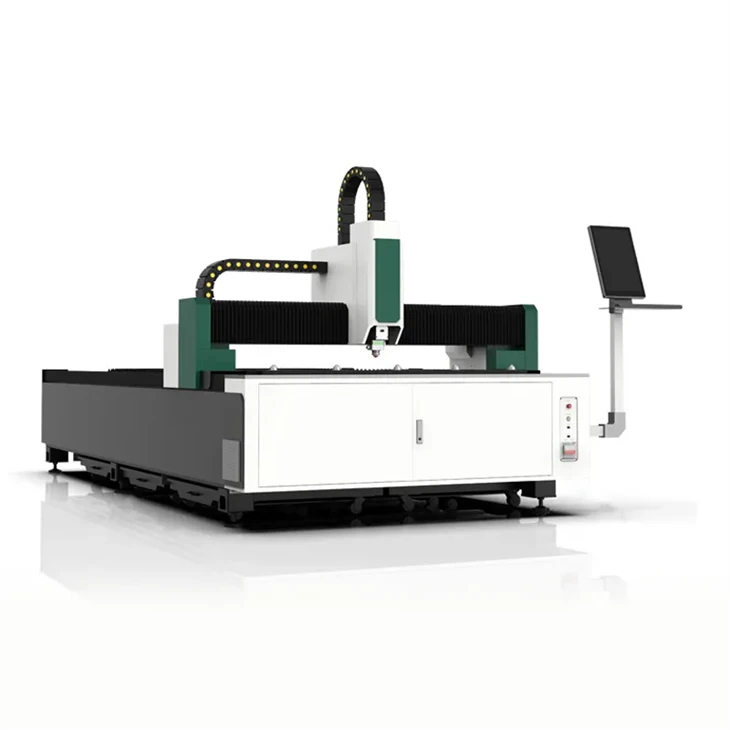

1	Model	EK-3015
2	Working area	3000*1500mm
3	Laser power	2000w 3000w 4000w 5000w
4	Laser source	MAX / Raycus / IPG
5	Cutting speed	120m/min
6	Repositioning accuracy	±0.03mm
7	Working voltage	3PH AC380v ±10% 50HZ-60HZ
8	Graphic format supported	BMP, PLT, DST, DXF, AI,CDR
9	Rack	XY Axis Taiwan Rack High Precision Grinding of Skew Rack
10	Maximum acceleration	2G
11	Driving system	Yaskawa / FUJI / Leadshine Servo motor drive
12	Water chiller brand	S&A / Hanli
13	Reducer	SHIMPO Reducer from Japan
14	Working temperature	0-45°c
15	Electrical Components	Schneider, Delixi, etc.
16	Laser control system	Cypcut controller
17	Optional	Air compressor, Smoke Purifier,etc.

Key Components of a Fiber Laser Cutting Machine

Laser Source
The fiber laser source is typically made of rare-earth elements like ytterbium. These materials are excited by a diode laser, producing high-intensity light. The laser source is crucial because its quality and power output directly affect the cutting speed, thickness, and overall performance of the machine.

Fiber Optics
Fiber optic cables transmit the laser from the source to the cutting head. Fiber optics offer advantages over traditional systems because they deliver high-quality light with minimal loss and are more compact, reducing the need for additional mirrors or lenses.

Control System
The control system manages the laser cutting process. It guides the cutting head along its path and regulates the laser's power, speed, and gas flow. It ensures precise movements, allowing the cutting machine to follow intricate designs with accuracy.

Motion System
The motion system includes the machine's mechanical components that move the cutting head, such as the gantry, linear motors, rails, and drives. Precision in the motion system is crucial to achieving smooth and accurate cuts.

Cooling System
Fiber lasers generate heat during operation. A cooling system is necessary to prevent overheating and maintain optimal performance. Common cooling methods include water cooling or air cooling.

Cutting Head
The cutting head holds the laser focusing lens and nozzle. It is a highly accurate component, controlling the beam's focal point and ensuring that the laser is always directed precisely at the workpiece.

Assist Gas Delivery System
As mentioned, gases like nitrogen or oxygen assist in the cutting process by blowing away molten material, preventing oxidation, and cooling the cut area.

Applications of Fiber Laser Cutting Machine

Automotive Manufacturing:

The automotive industry uses fiber laser cutting machine technology a lot. It's great for making complex parts with high precision. These machines cut and shape parts like car bodies, engine parts, and exhaust systems. Using metal laser cutting machine tech helps cut down on waste and makes production faster.

Metal Fabrication and Sheet Metal Processing by Fiber Laser Cutting Machine:

Metal fabrication and sheet metal processing are key areas where fiber laser cutting machine tech stands out. These machines offer unmatched precision and accuracy. They are perfect for cutting and shaping metals like steel, aluminum, and copper.

Construction and Architectural Metal Work:

The fiber laser cutting machine is now a key tool in construction and metal work. It cuts and shapes metals like steel, aluminum, and copper with great precision. This makes it very useful for these tasks.

Electronics and Consumer Goods Manufacturing by Fiber Laser Cutting Machine:

Fiber laser cutting machines are now key in making electronics and consumer goods. They cut and shape parts with great precision. This includes PCBs, cases for consumer electronics, and small parts. The best metal laser cutting machine cuts down on waste and boosts efficiency, making it vital for makers.

Medical Device Manufacturing Capabilities:

Fiber laser cutting machines have changed the medical device industry. They offer high precision and accuracy. This is key for making complex shapes and designs needed in medical devices. A metal cutting machine is vital for creating detailed parts easily.

Maximum Thickness a Fiber Laser Can Cut

Laser Powers	500W	1000W	2000W	3000W	4500W	6000W
Stainless Steel	2mm	4mm	6mm	8mm	10mm	16mm
Carbon Steel	5mm	8mm	16mm	20mm	22mm	22mm
Aluminum	-	3mm	4mm	6mm	8mm	12mm
Copper	-	3mm	4mm	6mm	8mm	10mm

Types of Fiber Laser Cutting Machines

Low-Power Fiber Lasers

This type of fiber laser cutting machine is normally utilized for cutting thin substances such as metals, sheet metal, and plastics. They are typically utilized in industries like electronics, signage, and jewelry making.

Medium Power Fiber Lasers

These fiber laser machines are eligible for operating on a wider range of materials and thicknesses, comprising metals and alloys of medium thickness. They find applications in industries like aerospace, automotive, and machinery manufacturing.

High-Power Fiber Lasers

The high-powered machines are specifically designed for heavy-duty cutting of thick metals and are generally utilized in industries needing high throughputs, such as construction, shipbuilding, and heavy machinery.

Our factory

We have a highly standardized production workshop to ensure that every link is precisely controlled, to achieve efficient and high-quality output. Our workshop is organized into clearly defined zones, each dedicated to specific stages of production, from raw material handling to final product assembly. By maintaining a standardized production process, we can deliver reliable, high-quality products to our customers consistently and efficiently.

Certification

productcate-1-1

FAQ

Q: What are the safety measures for cutting thick materials with a laser?

A: Personal Protective Equipment (PPE): Wearing safety glasses, flame-resistant clothing, gloves, and masks.
Ventilation and Fume Extraction: Ensuring proper ventilation and using fume extractors to manage smoke and fumes.
Fire Safety: Keeping fire extinguishers and fire blankets nearby, and training operators on emergency procedures.
Regular Maintenance: Performing routine checks and maintenance to ensure the machine operates safely and efficiently.

Q: Can a single laser cutting machine handle both thin and thick materials effectively?

A: Yes, modern laser cutting machines, especially those integrated with advanced CNC systems and adaptive optics, can handle both thin and thick materials effectively. By adjusting settings such as power, speed, and focus, and using appropriate assist gases, a single machine can achieve high-quality cuts across a wide range of material thicknesses.

Q: What is the principle of fiber laser cutting machine?

A: Fiber laser cutting is a type of laser cutting that uses a high-power laser beam focused through a Fiber optic cable. The Fiber optic cable is made up of flexible glass Fibers that guide the laser beam to the cutting head.

Q: What is the wavelength of a fiber laser cutting machine?

A: Fiber lasers typically operate within a range of 800 nm to 2200 nm. These wavelengths are particularly effective for cutting through industrial metals due to their ability to be finely focused and to penetrate deeply into the material.

Q: What are the optional accessories for fiber laser cutting machines?

A: It mainly include smoke purifier, voltage stabilizer, protective glass.

Q: Does fiber laser cutting machine cut acrylic?

A: No, it doesn't. Fiber laser cutting machine is mainly used for cutting plates and pipes.

Q: How accurate is a fiber laser cutter?

A: Most fiber lasers are accurate within 0.03mm

Q: What affects the fiber laser cutting accuracy?

A: After selecting the appropriate cutting machine, one of the largest factors in cutting accuracy is the quality of the material you're cutting. Higher quality material creates a more precise and cleaner cut. When cutting different materials, it's always recommended to cut a few sample pieces to tune your parameters.

Q: How to find the focal position / active focus of the fiber laser cutter?

A: The focal position of a fiber laser, sometimes referred to as active focus, refers to the distance from the laser's focal point to the surface of the material being cut. Fiber laser heads often include auto-focus, making setup simple. UTE's laser heads come with auto-focus as a standard feature.

We're well-known as one of the leading fiber laser cutting machine manufacturers and suppliers in China. Please feel free to buy high quality fiber laser cutting machine for sale here from our factory. For price consultation, contact us.
