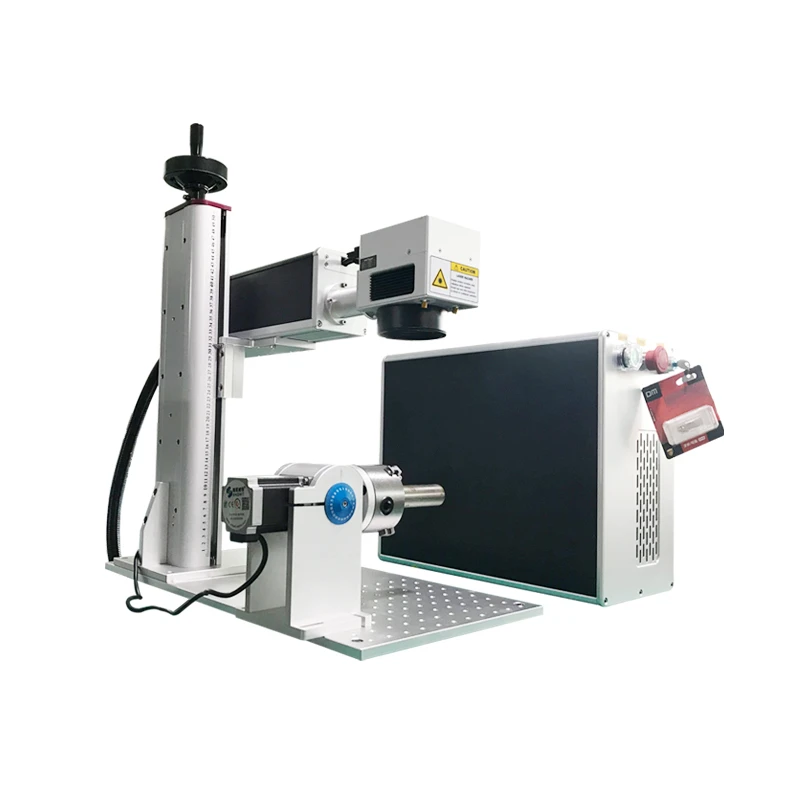

Mopa Fiber Laser Engraving Machine
1. Color mark for stainless sheet.
2. Easy operate without maintenance.
3. Higher precision, faster speed.
4. The machine with air cooling, small size, low power consumption.
5. Red light preview, how the marking position before marking.
6. Rotary attachment optional, can engrave and mark inside and outside ring jewellery.
Features
Parameters
|
1 |
Model |
MOPA fiber laser engraving machine |
|
2 |
Laser power |
30w/ 50w/ 100w |
|
3 |
Working area |
110*110mm/ 175*175mm/ 300*300mm |
|
4 |
Cooling way |
Air cooling |
|
5 |
Marking depth |
0.05mm-1mm |
|
6 |
Marking speed |
9000mm/s |
|
7 |
Support format |
PLT, BMP, DXF, AL, CDR, PCX, DST, GIF, DWG |
|
8 |
Min. Line width |
0.01mm |
|
9 |
Control system |
JCZ controller |
|
10 |
Working temperature |
5℃-40℃ |
|
11 |
Working humidity |
5%-95% |
|
12 |
Software |
EZ cad |
|
13 |
Working voltage |
AC220V 50HZ /AC110V 60HZ |
|
14 |
Wooden box size and weight |
890*520*860 mm, 76kg |
Application of the MOPA fiber laser engraving machine
Many type of metals: Gold, Silver, Stainless Steel, Copper, Aluminum, Chrome , Brass, etc.
Some Non-metal materials & Special surface treatment: Silicon wafer, Poly urethane, Ceramics, Plastic, Rubber, Epoxy resin, PVC, PC, ABS, Coating film, etc.
Feature of MOPA fiber laser engraving machine
Packing & Shipping
Laser marking machine inside with waterproof thin plastic inside, and outside free from fumigation plywood boxes
