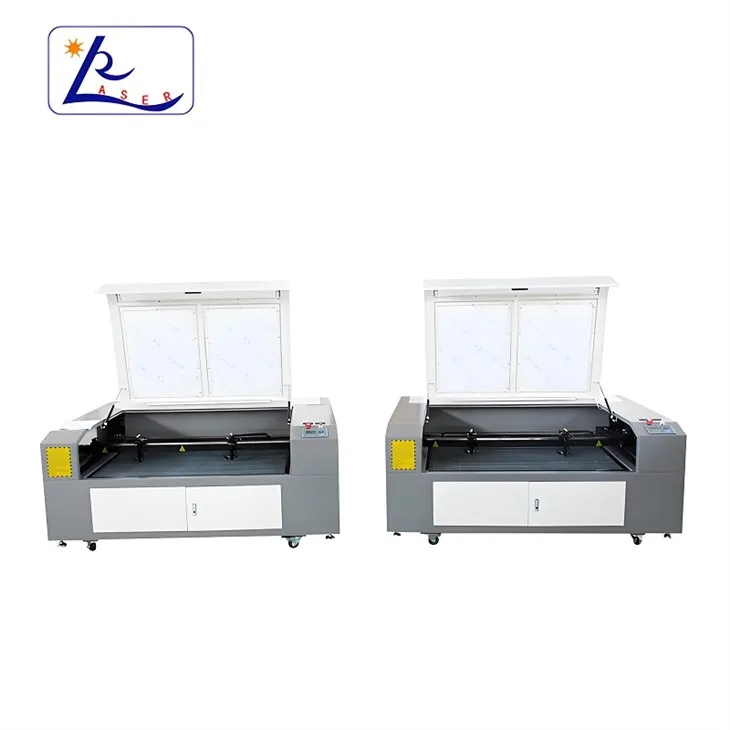

Dual-Head CO2 Laser Cutting Machine
It is widely used in cutting, engraving, through-carved, hole drilling on fabric, garment, leather, wood and bamboo, acrylic, craft and gift, marble and granite, ceramic, glass and other non-metal materials.
Features
Applicable Industry
It is widely used in cutting, engraving, through-carved, hole drilling on fabric, garment, leather, wood and bamboo, acrylic, craft and gift, marble and granite, ceramic, glass and other non-metal materials.
Product Details
Technical Index
|
Laser Type |

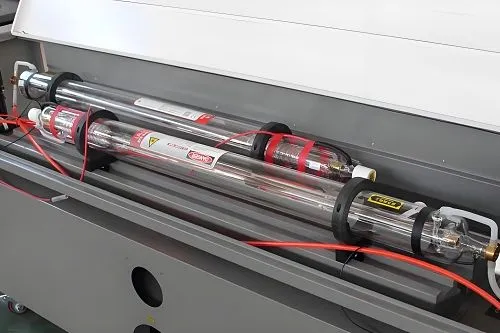

CO2 Sealed-off laser glass tube, water-cooled |
|
Laser Power |
150W |
|
Max. cutting size |
1300 * 900mm |
|
Engraving Speed |
0-60,000mm/min |
|
Cutting Speed |
0-30,000mm/min |
|
Min. cutting character |
English letter: 1*1mm |
|
Max. Scanning Accuracy |
2500DPI |
|
Positioning Accuracy |
<+/-0.01mm |
|
Total Power |
<500W |
|
Operating Temperature |
0-45 degree Centigrade |
|
Operating Moisture |
5-95% |
|
Max. engraving depth |
3.5mm |
|
Supporting Figure Format |
DST,PLT,BMP,DXF,AI |
|
Supporting Software |
CORELDRAW,PHOTOSHOP,AUTOCAD,CAD,TAJIMA. |
|
Color Separation |
Yes |
|
Driving System |
Stepper motor and drivers |
|
Machine Dimension |
1780*1330*920mm |
Inclusive Accessories
Laser Engraving software (English Version)
- User Manual (CD)
- Water pump
- Air Pump
- Power and USB cable
- 3 Reflect optics (installed )
- 1 Focus optics (installed)
- 1 Laser tube (install)
- Red dot pointer
Optional Parts: Water Chiller, Rotary, Auto Focus, Ball screw motorized platform.
