960 80w Laser Engraving Machine



An 80W CO2 laser engraving machine is used for cutting and engraving a wide range of non-metallic materials. 80W CO2 laser engravers are suitable for both hobbyists and commercial use, offering precise engraving and cutting capabilities on a wide range of materials.



Applications:

Engraving: Creating detailed designs, logos, or text on wood, acrylic, glass, leather, paper, fabric, stone, and ceramics.

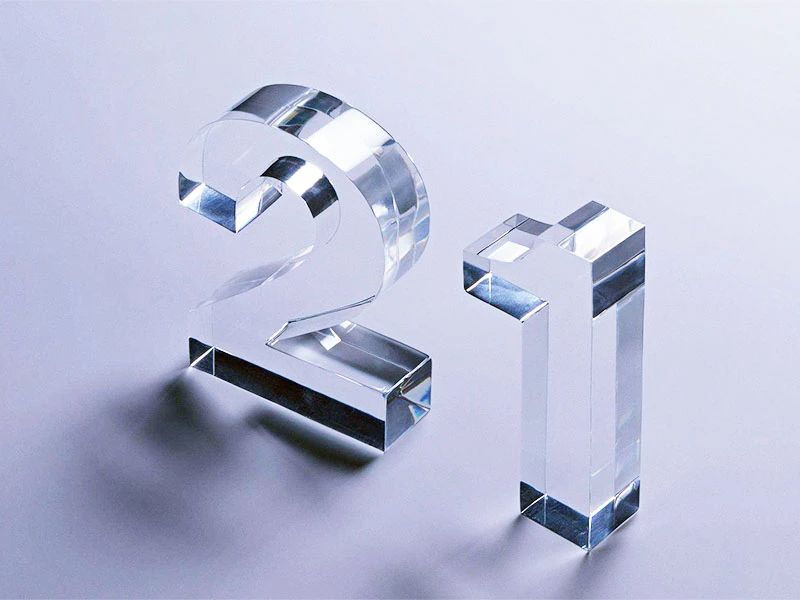

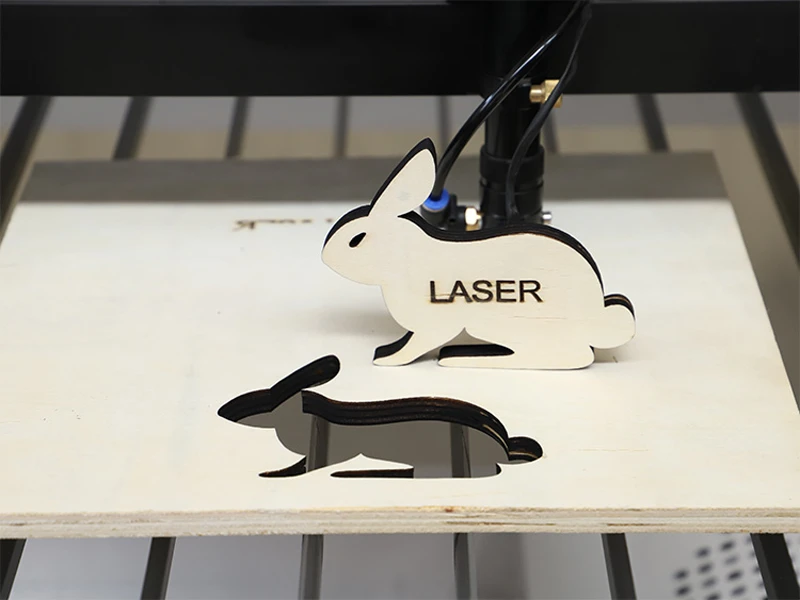

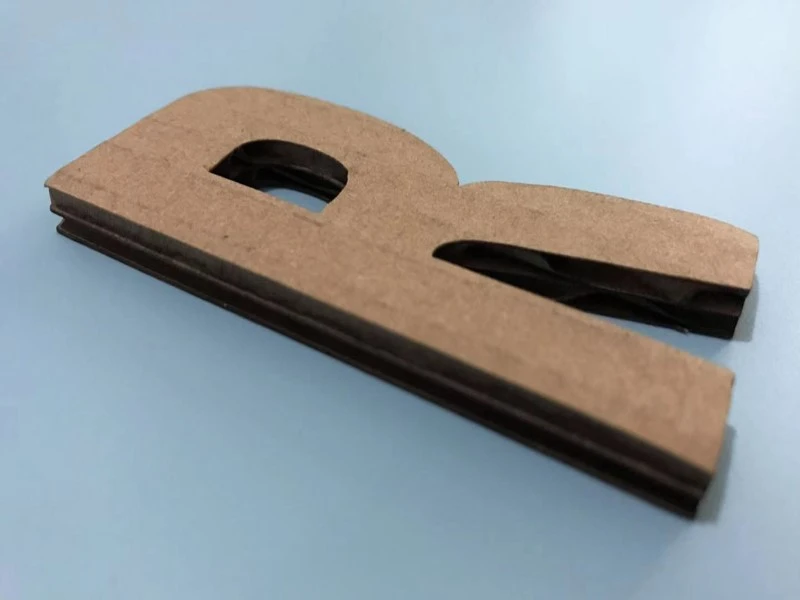

Cutting: Cutting materials like wood, acrylic, leather, and fabric for crafts, signage, or industrial purposes.


Features:

1. 60W and 80W laser power are suitable for engraving. Their low power and small spot size produce excellent engraving results on non-metallic materials.

2. CO2 glass tubes are cheaper than RF tubes, and CO2 RF tubes with more a longer lifespan than glass tubes. Choose the right laser tube based on your budget.

3. This 960 model has an elegant design and, with its small size, it's suitable for somebody who likes to make handicrafts.
4. Ruida 8445 control system, it is easy to learn and operate. The machine with good quality and stable performance.
5. Our machine is equipped with Leadshine or YAKO driver and stepper motors, which make the equipment work more stably and with higher accuracy.
6. The machine could add a motorized up and down platform and rotary device, if you are engraving for thick materials or engraving for cylinder materials.

7. It is suitable for non-metal materials, such as double color board, plexiglass, glass, bamboo and wood, rubber, marble, granite, tiles, leather, etc.





Model	EK960
Working area	900*600mm
Laser power	80W
Laser type	CO2 sealed laser tube, water-cooled
Engraving speed	0-10000mm/min
Cutting speed	0-5000mm/min
Power supply	AC 220V±10% /50HZ or 110V±10%//60HZ
Graphic format supported	BMP, PLT, DST, DXF, AI, CDR
Software supported	CorelDraw, PhotoShop, AutoCAD
Laser Output Control	1-100% software setting
Highest Scanning Precision	2500DPI
Resolution ratio	<0.01mm
Location precision	<0.01mm
Working temperature	5°C-40°C
Operating humidity	5%-95% (without condensed water)
Equipment Dimension	1790*1150*1300mm
Gross weight	320K/ 450Kg





1. Laser head with auto focus system.

Auto focus should match the up and down table. The device can easily and quickly focus on different materials, saving much time, more intelligent.



2. Honeycomb and blade table

Honeycomb and blade table for choice. According to different materials, choose the right working platform to help you get better cutting results.



3. Control system

Ruida control system, the most popular control system, supports multiple languages, has stable performance, easy to learn and operate.



4. RECI Laser Tube

China top one quality laser tube, use life of more than 10,000 hours, shares global protection during warranty, with high working efficiency and fast cutting speed.



5. Taiwan Linear Guide Rail

Adopted Taiwan CSK or HIWIN linear guide rail, fast running and high positioning accuracy for a longer time, improves the accuracy of engraving and cutting.



6. Control box

Installing high-quality electrical components in China, more secure. Reasonable layout with clean and efficient design, it is convenient for machine repair and maintenance.



Our packing staff will first check the machine and accessories according to the order, place the machine accessories reasonably, fix the machine and accessories, wrap them with protective plastic film, and finally pack them in plywood boxes and load them into containers for shipment to the port.
