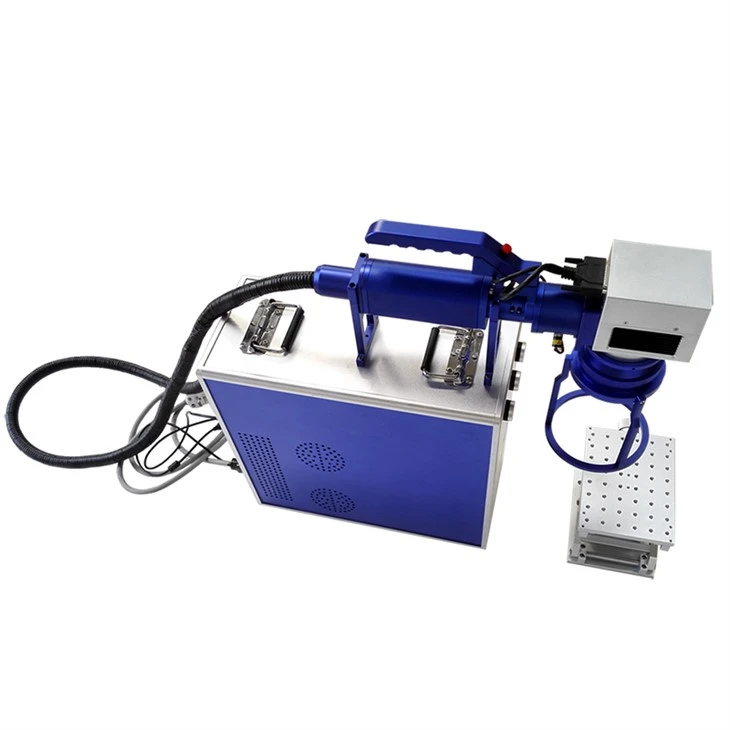

Handheld Fiber Laser Marking Machine
Model: EK-30w
Working Area: 110*110mm, 150*150mm, 200*200mm
Power option: 20w 30w 50w 100w
Application: Metal materials and some non-metal materials.
Payment terms: TT, Paypal, Western Union
Optional device: 2D/3D moving table, Rotary device, Filter
1. Easy operate without maintenance.
2. Higher precision, faster speed.
3. The machine with air cooling, small size, low power consumption.
4. Red light preview, how the marking position before marking.
Features
Specification of handheld fiber laser marking machine
|
1 |
Machine name |
Handheld fiber laser marking machine |
|
2 |
Fiber source power |
30w (20w/ 50w/ 100w for choose) |
|
3 |
Working area |
110*110mm (200*200mm/ 300*300mm for choose) |
|
4 |
Cooling method |
Air cooled |
|
5 |
Marking depth |
<1mm |
|
6 |
Marking speed |
9000mm/s |
|
7 |
Graphic format |
DXF, PLT, BMP, AL, CDR, PCX, DST, GIF, DWG |
|
8 |
Min. line width |
0.01mm |
|
9 |
Controller |
JCZ |
|
10 |
Working temperature |
5℃-40℃ |
|
11 |
Working humidity |
5%-95%(without condensed water) |
|
12 |
Software |
EZ cad |
|
13 |
Working voltage |
AC220V 50HZ |
|
14 |
Wooden box |
900*360*780 mm, 65kg |
Applicable industry
Handheld fiber laser marking machine can mark all kinds of metal and some non-metal, metal alloy materials, plastic, rubber other materials.
Marking pattern, text, QR code, serial number, counter, date, shift, variable, etc.
Feature of handheld fiber laser marking machine
Air-cooled inside, small occupation, easy to install and operation.
Beijing SINO-GALVO galvanometer, high speed Galvanometer scan head adopting SCANLAB technology, digital signal, high precision.
Focus ring, customer can mark on large size working piece or heavy working piece.
Handheld marking machine, convenient for marking immovable or difficult to fix materials.
JPT/ Raycus/ Max/ IPG for for choose, lifetime around 100000 hours, with high quality laser beam and strong power.
The control cabinet's reasonable layout makes machine repair and maintenance convenient.
Packing & Shipping
The marking machine is packaged in a non-fumigated plywood crate, with an inner layer of dust-proof plastic film.
