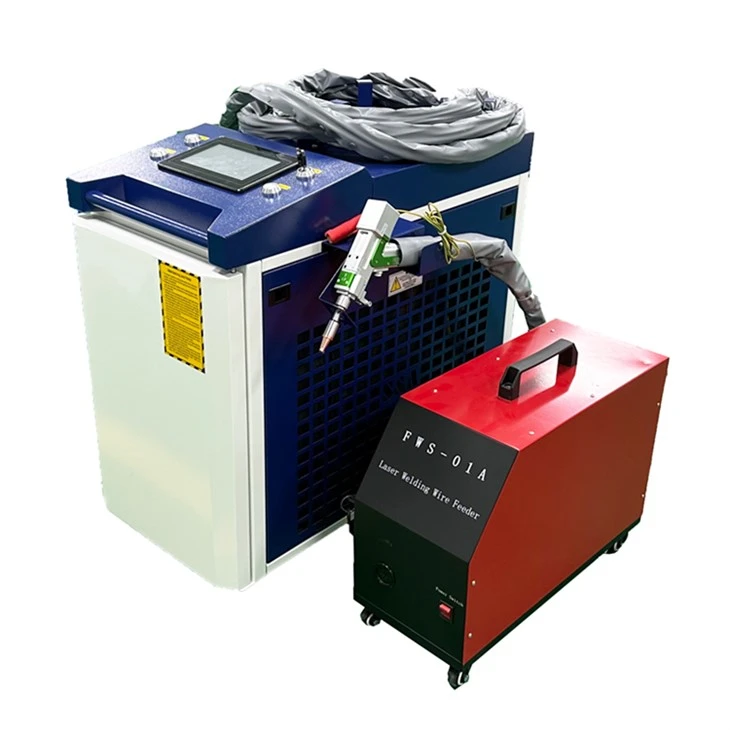

Mini Steel Welding Machine

Model: EK-2000
Working voltage: 220v/50-60hz
Power: 1000w 2000w 3000w
Application: Stainless Steel, Carbon Steel, Aluminum, Galvanized sheet

Send Inquiry

Features

Machine Features

The mini steel welding machine can not only clean the metal surface contaminants and cleaning weld beam, but also weld and cut various metal materials. It is a multi-functional laser equipment. And it has three modes of welding cleaning and cutting, which can be flexibly switched.

Applicable industries

It is suitable for welding metal sheet materials:such as stainless steel, aluminum alloy, iron, galvanized sheet, carbon steel, etc.It can be replaced of the traditional argon arc welding, arc welding and other processes.

Details Of Mini Steel Welding Machine

Welding gun

The handheld welding gun features a display screen for real-time monitoring and adjustment of welding parameters.

Laser Source

High reliability High power stability Excellent beam quality High modulation frequency High electro-optical conversion efficiency

Water chiller

Small size.Strong compatibility. Stable performance.Energy saving.

Control Panel

Multiple sets of parameters can be saved and there is no need to adjust again for multiple welding in the future after one test.

Wire feeder

Stable feeding speed with low speed in thin plate situation.

Control switch

The emergency stop switch protects the operator and quickly stops the equipment from working.

Supply spare Parts

20 PCs lens, 2 sets nozzles, 2 sets protect glasses, 1 set protective mask filter, several screw-driver, 1 roll wire and box for collecting these parts.

Specification Of Mini Steel Welding Machine

Model	Fiber Laser Welding Machine For Metal
Laser Power	1000w,1500w, 2000w, 3000w
Laser Fiber Wire Length	10m
Laser Output power adjustment range	10% - 100%
Laser Source	MAX (Option: Raycus, IPG, BWT, Reci)
Control System	UMW(Option: Raytools, Relfar, Gefasst)
Control Panel	Touch Screen 7 inch
Support Languages	18: Chinese Simplified, Chinese Traditional, English, Polish, Turkish, Arabic, Japanese, Korean, German, Spanish, Russian, French, Portuguese, Italian, Hungarian, Czech, Finnish, Vietnamese
Auto Wire Feeder	Single Type, Load Weight 20KG
Cooling Method	Water Cooling
Auxiliary Gas	Nitrogen or Argon gas Note: Cleaning mode can use compressed air
Voltage	220V 1PH 50HZ/60HZ (Option: 110V)
Machine Dimension	950500850mm
Package Dimension	13506501000mm
Package Weight	200KG
