What is the dust collection system like on a Stone Cnc Router Machine?
As a supplier of Stone CNC Router Machines, I've witnessed firsthand the crucial role that dust collection systems play in the performance and longevity of these powerful tools. In this blog post, I'll delve into what the dust collection system on a Stone CNC Router Machine is like, exploring its components, functions, and the benefits it brings to both the machine and the operator.
Components of a Dust Collection System
A typical dust collection system on a Stone CNC Router Machine consists of several key components, each designed to work in harmony to effectively capture and remove dust generated during the carving process.
Dust Hood
The dust hood is the first line of defense in the dust collection system. It is typically positioned directly above the cutting area of the router machine and is designed to enclose the cutting tool and the workpiece as much as possible. The dust hood is connected to the dust collection ductwork and is responsible for capturing the majority of the dust generated during the cutting process.
Dust Collection Ductwork
The dust collection ductwork is a network of pipes that connects the dust hood to the dust collector. It is designed to transport the dust from the cutting area to the dust collector in a controlled manner. The ductwork is typically made of metal or plastic and is sized according to the airflow requirements of the dust collection system.
Dust Collector
The dust collector is the heart of the dust collection system. It is responsible for separating the dust from the air and collecting it in a container for disposal. There are several types of dust collectors available, including baghouse collectors, cartridge collectors, and cyclone collectors. Each type of dust collector has its own advantages and disadvantages, and the choice of dust collector will depend on the specific requirements of the Stone CNC Router Machine.
Fan
The fan is responsible for creating the airflow that drives the dust collection system. It is typically located at the end of the dust collection ductwork and is designed to pull the dust-laden air through the ductwork and into the dust collector. The fan is sized according to the airflow requirements of the dust collection system and is typically powered by an electric motor.
Functions of a Dust Collection System
The primary function of a dust collection system on a Stone CNC Router Machine is to remove the dust generated during the cutting process. This is important for several reasons:
Protecting the Machine
Dust can cause significant damage to the components of a Stone CNC Router Machine, including the cutting tool, the spindle, and the bearings. By removing the dust from the cutting area, the dust collection system helps to prevent premature wear and tear on these components, extending the lifespan of the machine.
Protecting the Operator
Dust generated during the cutting process can be harmful to the health of the operator. Inhalation of dust particles can cause respiratory problems, such as asthma and lung cancer. By removing the dust from the cutting area, the dust collection system helps to protect the operator from these health risks.
Improving the Quality of the Workpiece
Dust can also affect the quality of the workpiece. It can cause the cutting tool to become dull more quickly, resulting in a rougher surface finish on the workpiece. By removing the dust from the cutting area, the dust collection system helps to ensure a cleaner, smoother surface finish on the workpiece.
Benefits of a Dust Collection System
In addition to protecting the machine and the operator, a dust collection system on a Stone CNC Router Machine offers several other benefits:
Increased Productivity
By keeping the cutting area clean, the dust collection system helps to prevent the accumulation of dust on the cutting tool and the workpiece. This allows the cutting tool to operate more efficiently, resulting in faster cutting speeds and increased productivity.
Reduced Maintenance Costs
By preventing premature wear and tear on the components of the machine, the dust collection system helps to reduce maintenance costs. This can result in significant savings over the lifespan of the machine.
Compliance with Regulations
Many countries and regions have regulations in place regarding the control of dust emissions in the workplace. By installing a dust collection system on a Stone CNC Router Machine, operators can ensure compliance with these regulations, avoiding potential fines and legal issues.
Types of Dust Collection Systems
There are several types of dust collection systems available for Stone CNC Router Machines, each with its own advantages and disadvantages. The choice of dust collection system will depend on the specific requirements of the machine, including the size of the cutting area, the type of material being cut, and the airflow requirements of the system.
Centralized Dust Collection Systems
Centralized dust collection systems are designed to serve multiple Stone CNC Router Machines or other dust-generating equipment in a facility. They typically consist of a large dust collector located in a central location, connected to the individual machines or equipment by a network of ductwork. Centralized dust collection systems offer several advantages, including increased efficiency, reduced maintenance costs, and improved air quality throughout the facility.
Local Dust Collection Systems
Local dust collection systems are designed to serve a single Stone CNC Router Machine or other dust-generating equipment. They typically consist of a smaller dust collector located near the machine or equipment, connected to the dust hood by a short length of ductwork. Local dust collection systems offer several advantages, including lower initial cost, easier installation, and greater flexibility.
Portable Dust Collection Systems
Portable dust collection systems are designed to be easily moved from one location to another. They typically consist of a small dust collector mounted on a cart or stand, connected to the dust hood by a flexible hose. Portable dust collection systems offer several advantages, including increased mobility, lower initial cost, and greater flexibility.
Conclusion
In conclusion, a dust collection system is an essential component of a Stone CNC Router Machine. It helps to protect the machine, the operator, and the environment by removing the dust generated during the cutting process. By choosing the right dust collection system for your specific requirements, you can ensure the efficient and safe operation of your Stone CNC Router Machine for years to come.

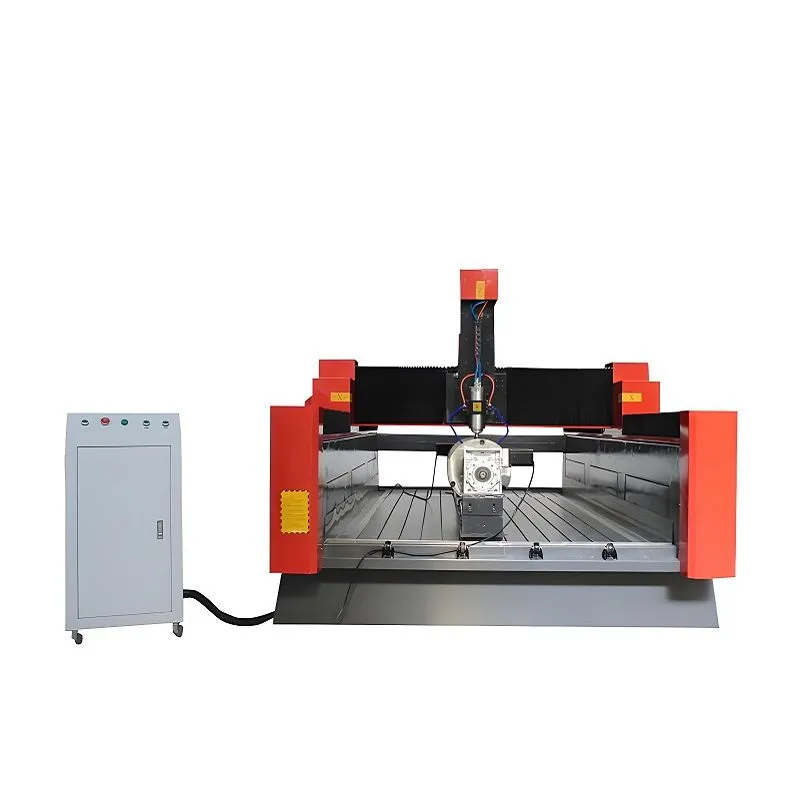

If you're interested in learning more about our Stone CNC Router Machine, Stone Carving CNC Router, or 3d Stone Carving Machine, or if you have any questions about our dust collection systems, please don't hesitate to contact us. We'd be happy to discuss your needs and provide you with a customized solution.
